Global Sensitivity Analysis for an Atmospheric Conductance Model

In this analysis, I look at an atmospheric conductance model based on vegetation height and windspeed, and I apply a variance-based sensitivity analysis by calculating Sobol indices.
Sensitivity Analysis
R
Author
Affiliation

Linus Ghanadan

MEDS

Published

June 7, 2024

Setup

# load libraries
library(sensitivity)
library(tidyverse)
library(purrr)
library(ggpubr)

Source atmospheric conductance function

For the purposes of showing the complete documentation for the function that I am working with, I have included the full contents of the R script that was sourced when I originally conducted this analysis.

#' Compute Atmospheric Conductance
#'
#' This function atmospheric conductance as a function of windspeed, and vegetation cahracteristics
#' @param       v windspeed (m/s)
#' @param      height vegetation height (m)
#' @param       zm measurement height of wind (m) (default 2m)
#' @param      k_o scalar for roughness (default 0.1)
#' @param      k_d scalar for zero plane displacement (default 0.7)
#' @author Naomi
#'
#' @return  Conductance (mm/s)

Catm = function(v, height, k_o=0.1, k_d=0.7) {

    zm_add = 2

    zd = k_d*height
    zo = k_o*height

    zm = height+zm_add

    zd = ifelse(zd < 0, 0, zd)
    Ca = ifelse(zo > 0,
     v / (6.25*log((zm-zd)/zo)**2),0)

# convert to mm
    Ca = Ca*1000
   return(Ca)
}

Generate input/parameter values

set.seed(123)

# generate input/parameter samples
np <- 1000
k_o <- rnorm(np, mean=0.1, sd=0.1*0.1)
k_d <- rnorm(np, mean=0.7, sd=0.7*0.1)
v <- rnorm(np, mean=300, sd=50)
height <- runif(np, min=3.5, max=5.5)

X1 <- cbind.data.frame(k_o, k_d, v, height=height)

# generate another set of input/parameter samples
k_o <- rnorm(np, mean=0.1, sd=0.1*0.1)
k_d <- rnorm(np, mean=0.7, sd=0.7*0.1)
v <- rnorm(np, mean=300, sd=50)
height <- runif(np, min=3.5, max=5.5)

X2 <- cbind.data.frame(k_o, k_d, v, height=height)

Run atmospheric conductance model

# use Jansen approach implemented by sobolSalt
sens_Catm_Sobol <- sobolSalt(model = NULL, X1, X2, nboot = 100)

# define input/parameters
parms <- as.data.frame(sens_Catm_Sobol$X)
colnames(parms) <- colnames(X1)

# run the model
res = pmap_dbl(parms, Catm)

# update the sensitivity analysis object with the results
sens_Catm_Sobol <- sensitivity::tell(sens_Catm_Sobol, res, res.names = "ga")

Plot conductance estimates

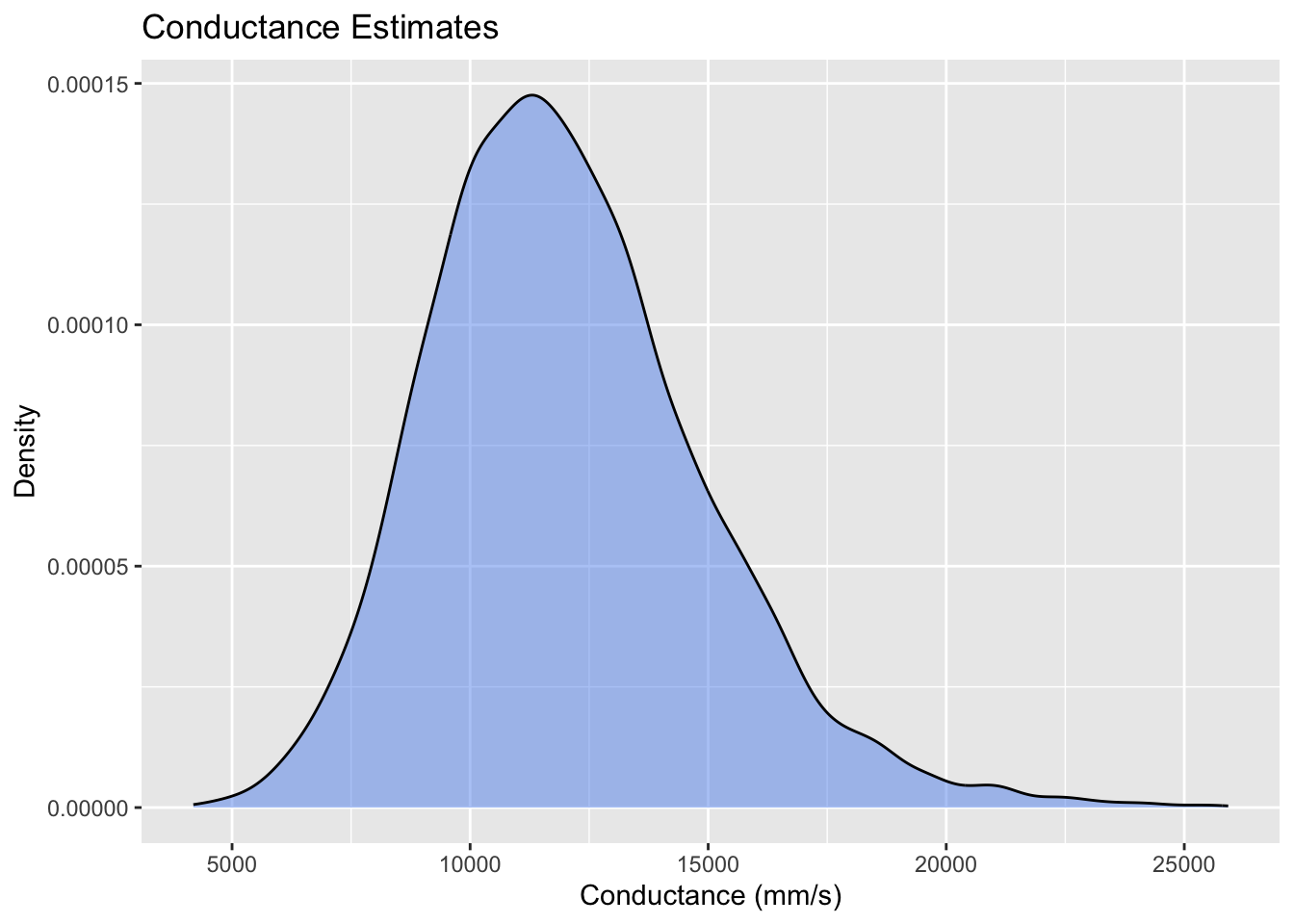

# plot distribution of conductance estimates
ggplot(data = data.frame(Ca = res), aes(x = Ca)) +
  geom_density(fill="cornflowerblue", alpha=0.5) +
  labs(title = "Conductance Estimates", x = "Conductance (mm/s)", y = "Density")

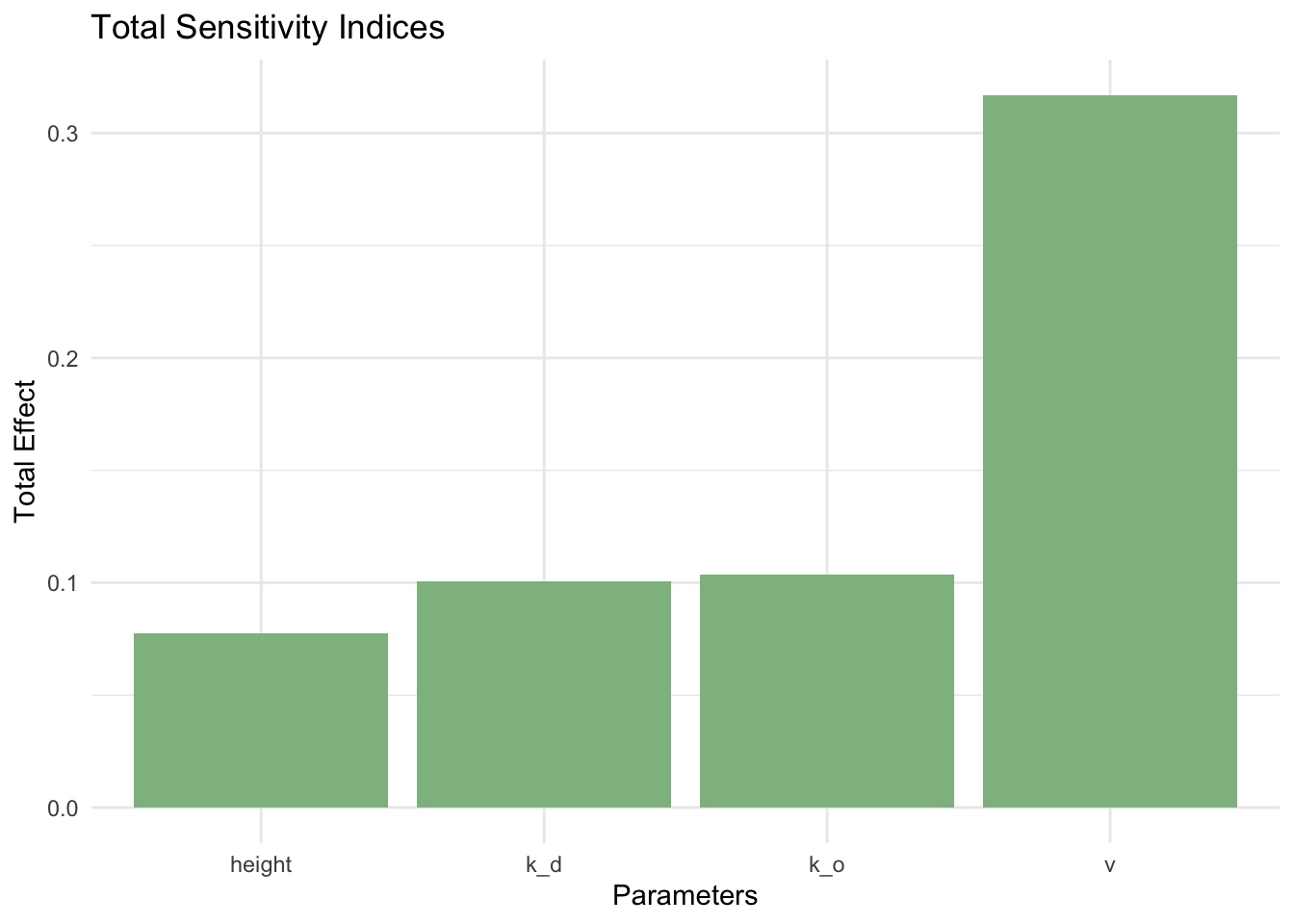

Plot total sensitivity indices of all inputs/parameters

# calculate total sensitivity indices
total_sensitivity <- apply(sens_Catm_Sobol$T, 1, mean)

# plot total sensitivity indices to identify second most influential parameter
sensitivity_df <- data.frame(
  Parameters = colnames(X1),
  TotalEffect = total_sensitivity
)
ggplot(sensitivity_df, aes(x = Parameters, y = TotalEffect)) +
  geom_bar(stat = "identity", fill = "darkseagreen") +
  labs(title = "Total Sensitivity Indices", y = "Total Effect", x = "Parameters") +
  theme_minimal()

Plot conductance against two most sensitive inputs/parameters

# plot two most sensitive inputs/parameters
both = cbind.data.frame(parms, gs=sens_Catm_Sobol$y)
ggplot(both, aes(v,gs, col=k_o))+geom_point()+labs(y="Conductance (mm/s)", x="Windspeed (cm/s)", title="Global Sensitivity Analysis: Impact of Windspeed and k_o on Conductance")

Estimate Sobol indices

# add parameter names to main effect and total sensitivity indices
row.names(sens_Catm_Sobol$S) = colnames(parms)
row.names(sens_Catm_Sobol$T) = colnames(parms)

# print all sobol indices
print(sens_Catm_Sobol)

Call:
sobolSalt(model = NULL, X1 = X1, X2 = X2, nboot = 100)

Model runs: 6000

Model variance: 8417654

First order indices:
        original          bias std. error  min. c.i. max. c.i.
k_o    0.2093548  0.0002043903 0.03498043 0.14767984 0.2931129
k_d    0.1993786  0.0042697793 0.03682199 0.12276724 0.2778684
v      0.4753836 -0.0016100511 0.02071453 0.44440102 0.5241987
height 0.1043329  0.0003478314 0.03216599 0.03546999 0.1750344

Total indices:
        original          bias  std. error min. c.i. max. c.i.
k_o    0.1690400  0.0004720644 0.010837170 0.1477810 0.1895922
k_d    0.1646352  0.0005778152 0.010384375 0.1446359 0.1836950
v      0.5199054 -0.0007921543 0.027909766 0.4669257 0.5705891
height 0.1276424  0.0003586299 0.007147771 0.1114200 0.1406503

Conclusion

In this setting (compared to the setting looked at in class), windspeed was higher and less variable, while vegetation was shorter. Comparing the two sensitivity analyses, we can see that these differences in conditions was associated with a decrease in model variance, as the model variance determined here (~8.4 million) was less than half the variance we found in class (~19.7 million). In addition, for the model we look at here, the total sensitivity index for k_d is significantly lower, while that for k_o, windspeed, and height are significantly higher. Because the total sensitivity index for windspeed is significantly higher, this tells us that atmospheric conductance is more sensitive to windspeed in areas where windspeed is high and less variable and vegetation is shorter. However, the lower model variance tells us that overall, atmospheric conductance has less variation in these conditions.
